Our Products

Engineered for every
large space.

HVLS ceiling fans, tube axial fans, centrifugal blowers, pivot social fans, profile axial impellers, roof extractors, and air handling units. Engineered with trusted global partners, delivered from Pune.

Product 01
01

HVLS Ceiling Fans

High Volume Low Speed fans are the most energy-efficient way to circulate large volumes of air in expansive spaces. Operating at low rotational speed with large-diameter blades, they create a gentle, consistent column of air movement that covers areas conventional fans simply cannot reach.

Crystal HVLS fans are available from 8ft to 24ft diameter, with Direct Drive or Gear Reducer AC motor configurations to suit every installation requirement.

  • Fan diameters from 8ft to 24ft (2.44m to 7.32m)
  • Coverage area up to 2,060 m² per unit
  • Direct Drive Permanent Magnet AC Motor or Gear Reducer AC Motor
  • Aerodynamic aluminium blades for maximum airflow efficiency
  • Double pivot adjustable ceiling mount, up to 45° angle adjustment
  • Secure safety cable and safety joints on every installation
  • Power consumption as low as 1.5kW for a full 24ft unit
Request a QuoteCalculate Savings
Crystal HVLS Ceiling Fan installed in industrial warehouse
Coverage per unit
Up to 2,060 m²
Where HVLS Fans Excel
Warehouse installation
Warehouses and Factories
Manufacturing plants, assembly floors, logistics centers

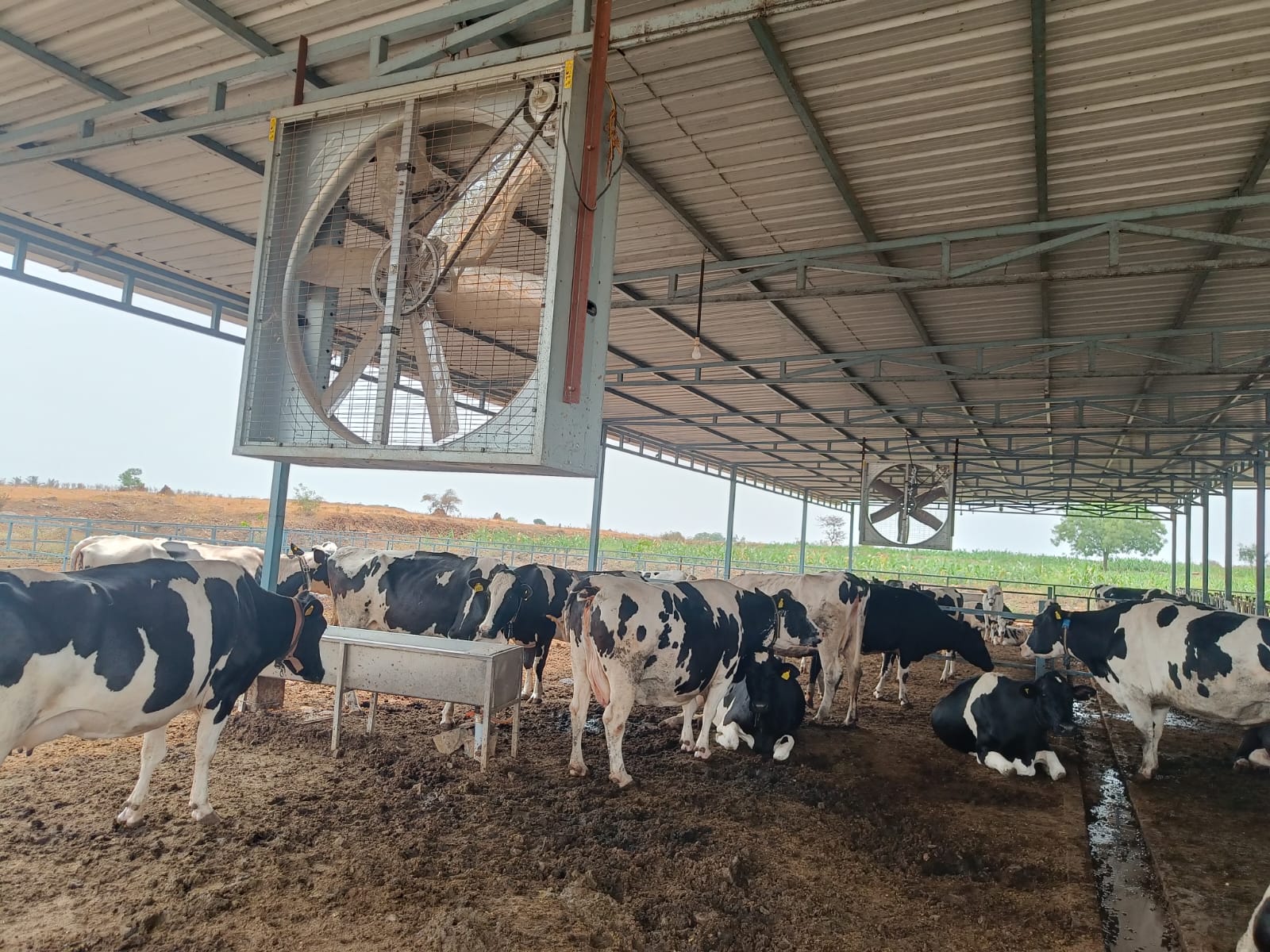

Crystal large wall-mounted exhaust fan installed in a dairy shed
Dairy and Livestock
Farms, dairy sheds, poultry and agricultural facilities
Large public space
Public and Commercial
Airports, sports arenas, gymnasiums, retail complexes
Product 02
02

Tube Axial Fans

Our tube axial fans are industrial-grade ventilation units built around precision impellers, housed in a cylindrical flanged casing with an integrated motor assembly. They are designed for targeted, high-performance airflow in demanding industrial environments.

Crystal sources its axial impellers through a formal agreement with HW Ventilation Italy since 2015, giving our customers access to European-grade precision engineering at competitive Indian pricing.

  • Precision impellers sourced through HW Ventilation Italy
  • Cylindrical flanged casing with integrated motor assembly
  • Optional finger guard available for added safety
  • Multiple impeller materials including PPG, PAG, ALU, and Ryton
  • AMCA-certified performance on applicable impeller models
  • Qualifan software-verified airflow on HW impeller range
  • Applications: radiator cooling, axial ventilation, exhaust systems
HW Ventilation Italy  |  Partnership since 2015Precision impeller engineering. AMCA certification and Qualifan airflow verification on applicable models.
Request a QuoteEnquire About Specs

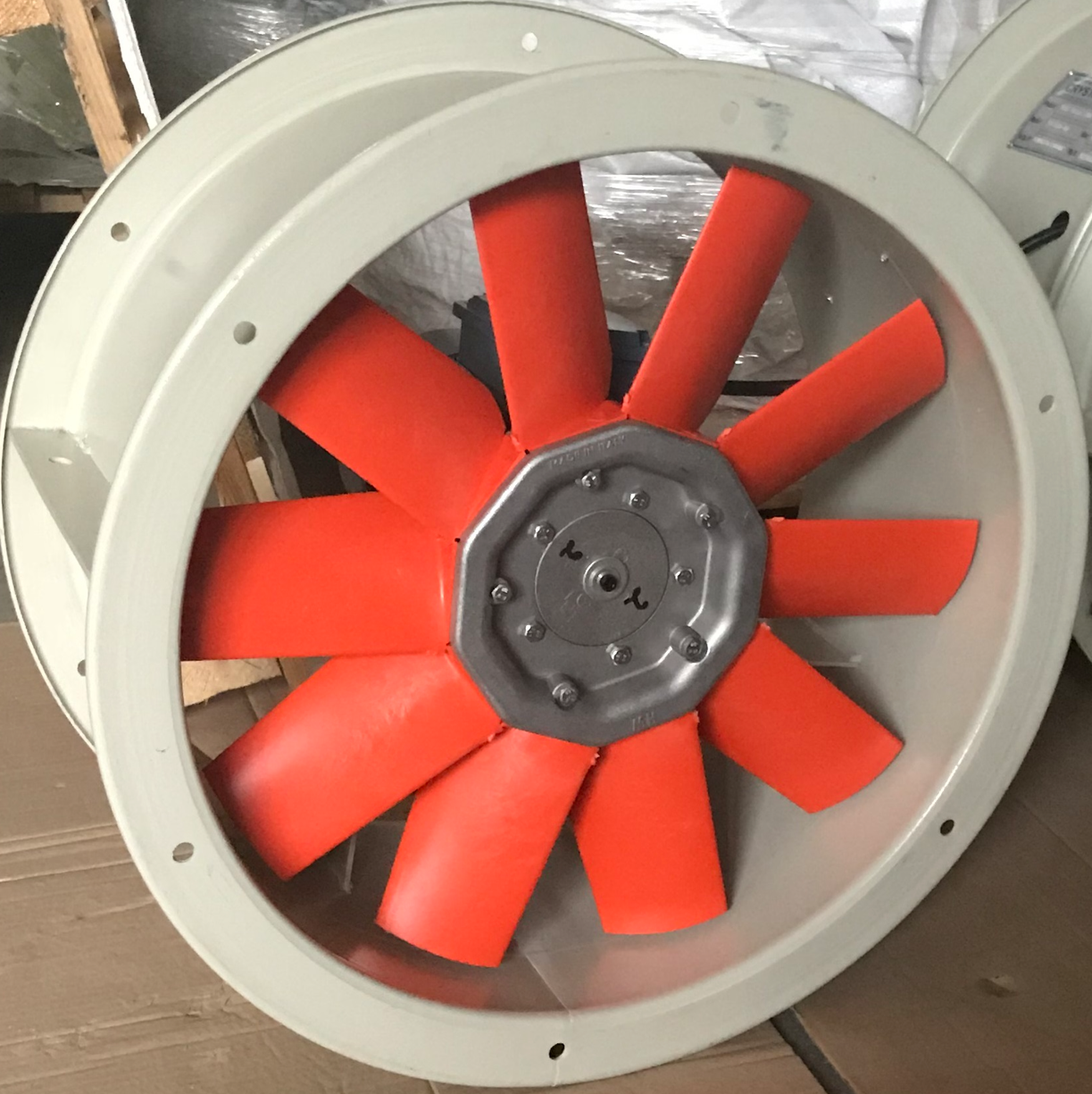

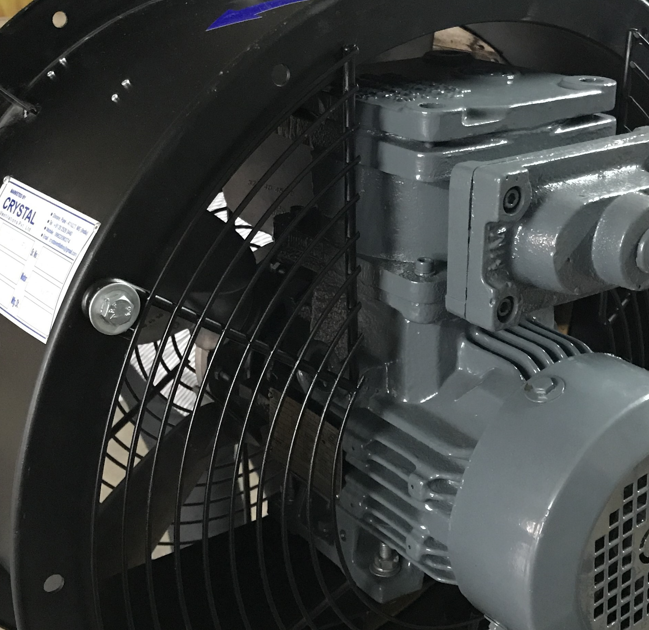

Crystal tube axial fan with HW Ventilation impeller and flanged casing Crystal tube axial fan, alternate configuration
Impeller partner
HW Ventilation Italy
Available as Individual Components

Need just the component?

Every core part of our axial fan systems is available to purchase on its own — for OEM builds, retrofits, replacements, or custom assemblies. Single units and bulk orders are both welcomed.

Component Specification Order
Profile Axial Impellers HW Ventilation Italy HasconWing® range. Airfoil & sickle profile, fixed or variable pitch. Diameters 230 – 1,520 mm. Single & bulk
Flanged Casings Tube-flanged from a single sheet of metal — inherently stronger than welded flanges. Custom diameters available. Single & bulk
Finger Guards Single and double-wire configurations. Custom sizes fabricated to order. Suits all standard axial fan diameters. Single & bulk
Motors Sourced from prominent industrial motor suppliers. Matched to your impeller diameter and airflow requirement. Single & bulk

Looking for something specific? Get in touch →

Product 03
03

Centrifugal Fans

Centrifugal fans accelerate airflow radially through an enclosed casing, producing higher static pressure than axial fans of comparable diameter. They are the workhorses of ducted ventilation, process exhaust, dust handling, and high-pressure industrial applications where conventional axial fans cannot deliver the required pressure rise.

Crystal supplies industrial centrifugal fans and blowers through a curated network of manufacturing partners, allowing us to match the specific airflow, pressure, and material requirements of your application.

  • Industrial extractor fans and centrifugal blowers
  • High-pressure designs for process and ducted applications
  • Backward-curved, forward-curved, and radial blade configurations available
  • Single inlet, double inlet, and plug fan variants on request
  • Direct drive or belt drive configurations
  • Multiple casing materials: mild steel, stainless steel, FRP per environment
Specified to your applicationCentrifugal projects are scoped from your airflow, pressure, casing, and environmental requirements. Share your spec and we will return a tailored proposal with model, materials, and lead time.
Request a SpecificationTalk to an Engineer
Crystal centrifugal fans installed on exterior wall with ducted intake
Sourcing model
Built to your spec
Product 04
04

Pivot Social Fans

Pivot social fans deliver targeted, oscillating airflow exactly where ceiling installation is impractical or undesirable. Wall and column-mounted, with 160° of horizontal oscillation, they cover wide social zones with focused air movement.

Ideal for retail concourses, hotel banquet spaces, restaurants, and any large gathering area where occupant comfort is paramount.

  • Wall, column, or post-mount installation
  • 160° horizontal oscillation for wide coverage
  • Adjustable vertical tilt for targeted airflow
  • Multiple finish options to match interior design
  • Energy-efficient motor operation
  • Low-noise design suitable for hospitality environments
Request a Quote
Pivot Social Wall Fan
Oscillation
160° coverage
Product 05  ·  OEM Supply
05

Profile Axial Impellers

Profile axial impellers are precision-engineered rotors at the heart of every axial fan — purpose-built with airfoil or sickle blade profiles bonded to a lightweight aluminium alloy hub. Crystal supplies the complete HasconWing® range from HW Ventilation Italy as standalone components for OEM, retrofit, and aftermarket buyers.

Each impeller is selected against the airflow, static pressure, rotation speed, noise target, and operating temperature of the parent system. Blade material, pitch type, and blade count are configured to suit applications from compressor cooling and engine radiators to ATEX environments and large industrial ventilators.

  • Diameter range: 230 mm to 1,520 mm
  • Operating temperature: -50°C to +300°C (series-dependent)
  • Fixed-pitch & variable-pitch configurations available
  • Airfoil profile (TS, TM, A, De-ALU) for high-efficiency, high-RPM duty
  • Sickle profile (F, C, C-ALU, SR, Q) for low-noise environments
  • Blade configurations from 3 to 20 blades, clockwise or anti-clockwise
  • Plastic, aluminium, and corrosion-resistant blade materials
  • Applications: compressors, radiators, snow cannons, livestock, dryers, ATEX, refrigeration, railway
  • Qualyfan® software-verified airflow on every selection
OEM InquiryRequest HW Catalogue

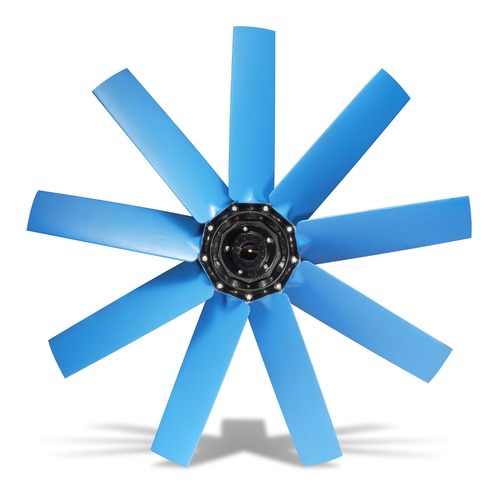

HW Ventilation TM variable-pitch airfoil profile axial impeller
Component supply
For OEM & retrofit
Product 06  ·  In-house Manufacturing
06

Flanged Casings

The cylindrical housing that holds the impeller assembly is one of the most under-specified parts of an axial fan — yet it directly determines structural integrity, flange seal, and ease of installation. Crystal manufactures flanged casings in-house using a tube flanging process from a single sheet of metal, producing a one-piece form that is mechanically stronger than welded equivalents.

Casings are sized to your impeller diameter, motor stator, and mounting interface. Standard diameters and bespoke dimensions are both fabricated to order, with bolt patterns matched to the parent installation.

  • Tube-flanged from a single metal sheet for inherent strength
  • No welded seams at the flange — eliminates a common failure point
  • Mild steel, galvanised, and stainless steel options
  • Custom diameters and depths fabricated to order
  • Custom bolt patterns to match existing duct or wall flanges
  • Powder-coat or industrial paint finish available on request
  • Suitable for retrofits, OEM assemblies, and replacement orders
Request a QuoteDiscuss Custom Dimensions

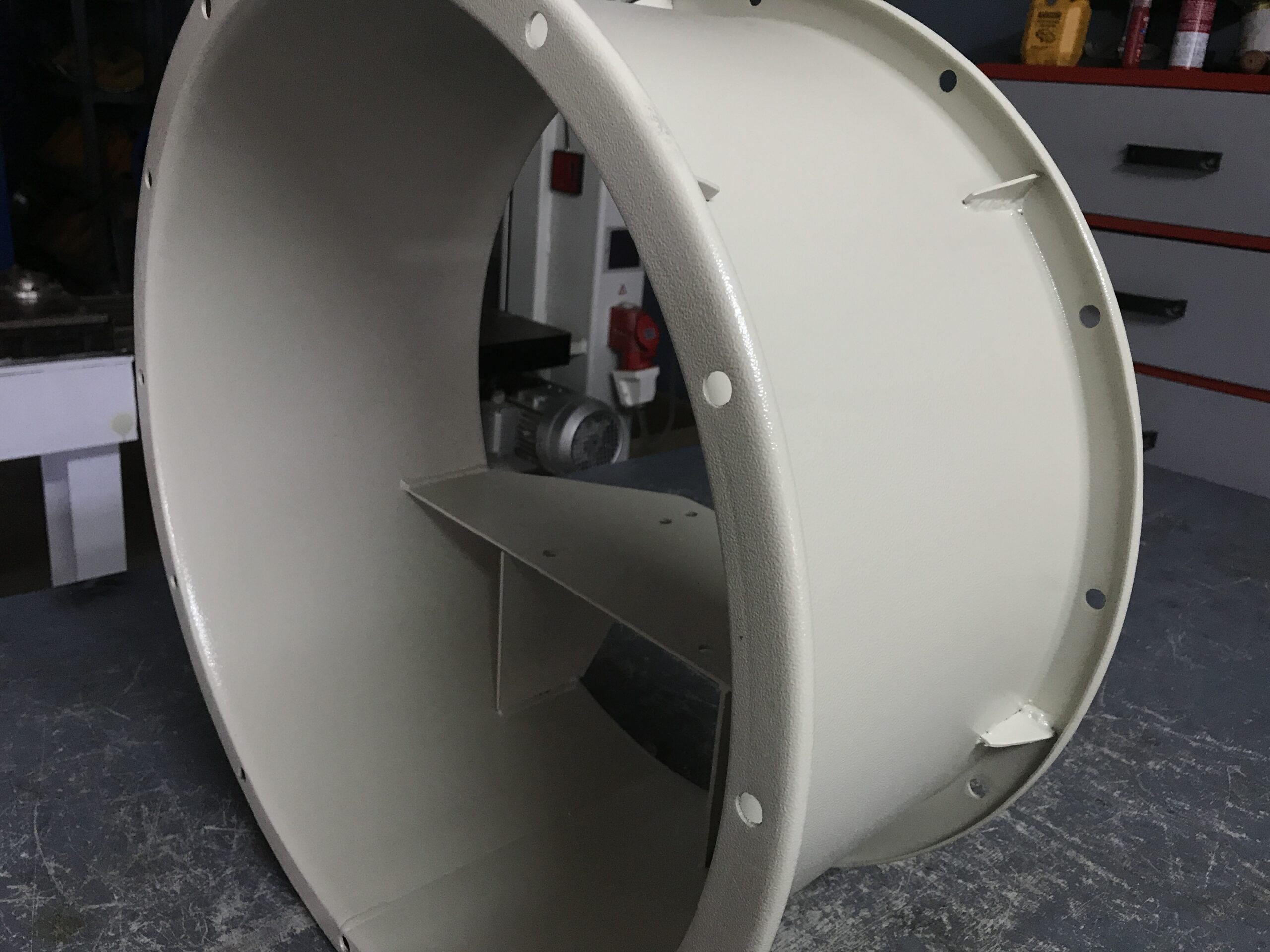

Crystal flanged casing finished and ready for assembly
Manufactured
Single-sheet flanged
Product 07  ·  Safety & Protection
07

Finger Guards

Finger guards are the wire-form safety mesh fitted to the inlet or outlet of every axial fan. They prevent accidental contact with the rotating impeller while preserving free airflow through the casing. Crystal fabricates finger guards in-house to match every standard axial diameter and to bespoke sizes on request.

Two configurations are available depending on the safety standard your installation has to meet: a single-wire guard for general industrial use, and a double-wire guard for higher-protection environments such as public-facing installations and occupied workspaces.

  • Single-wire configuration for standard industrial duty
  • Double-wire configuration for higher safety requirement zones
  • Available for every standard axial fan diameter
  • Custom diameters fabricated to order
  • Mild steel, galvanised, and stainless steel wire options
  • Powder-coat finish to match casing colour
  • Compliant mounting pattern for fast retrofit on existing casings
Request a QuoteSpecify Configuration

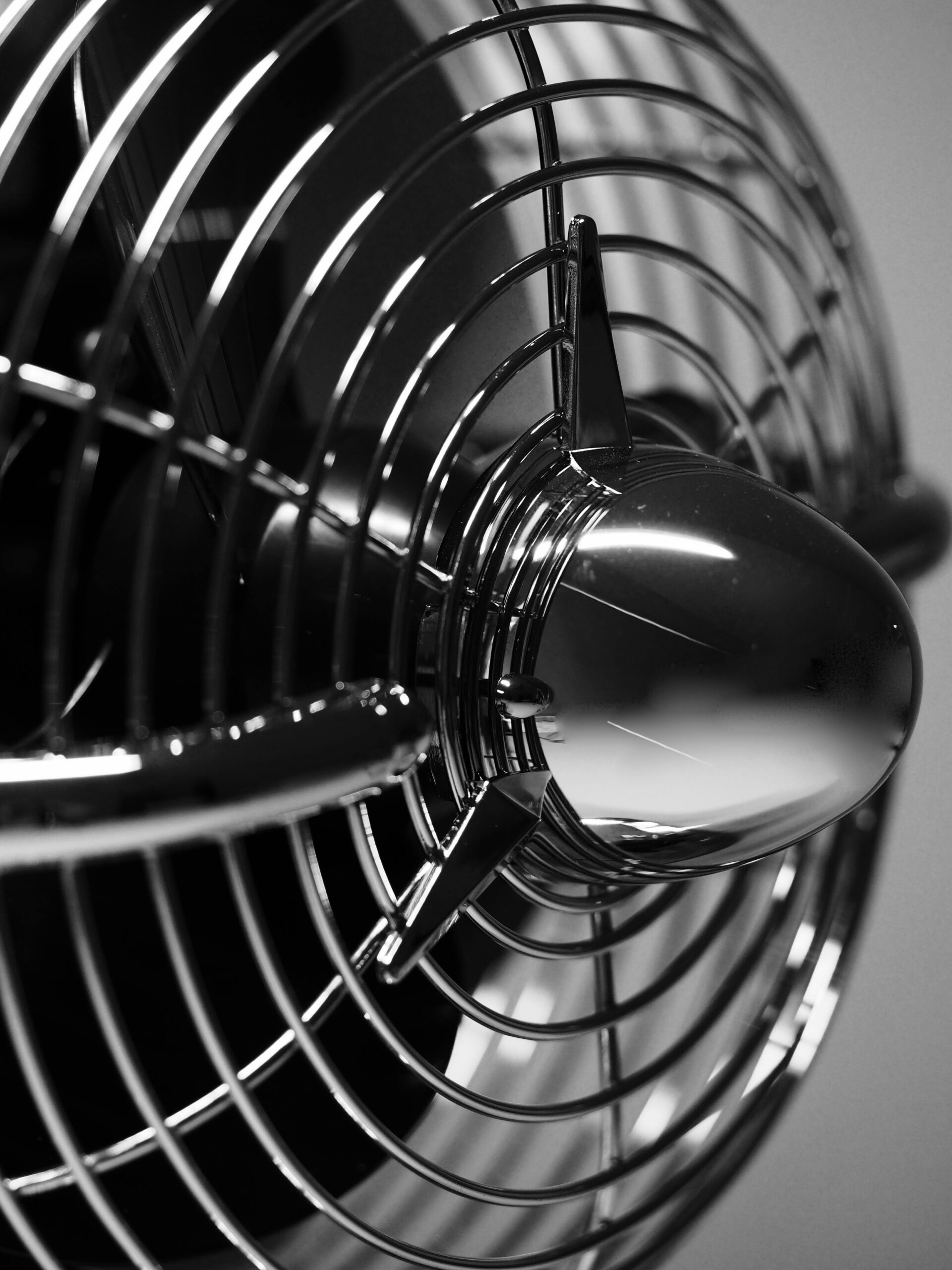

Crystal finger guard safety mesh for axial fans
Configurations
Single & double wire
Product 08
08

Roof Extractors & Motorized Ventilators

Roof-mounted extractors and motorized ventilators evacuate stale, hot, or contaminated air directly through the building envelope. Used in combination with low-level fresh-air intake, they create efficient natural and powered airflow patterns through industrial buildings.

Crystal supplies power-driven and gravity-assisted roof extractor units, available in both metal and impact-resistant plastic constructions, with motorized and free-running configurations.

  • Motorized roof extractor axial fans for forced exhaust
  • Power-driven roof extractors for high-volume air evacuation
  • Metal and high-impact plastic construction options
  • Weatherproof IP-rated enclosures
  • Belt-drive and direct-drive variants available
  • Suitable for warehouses, factories, dairies, kitchens, and chemical processing
Request a Quote

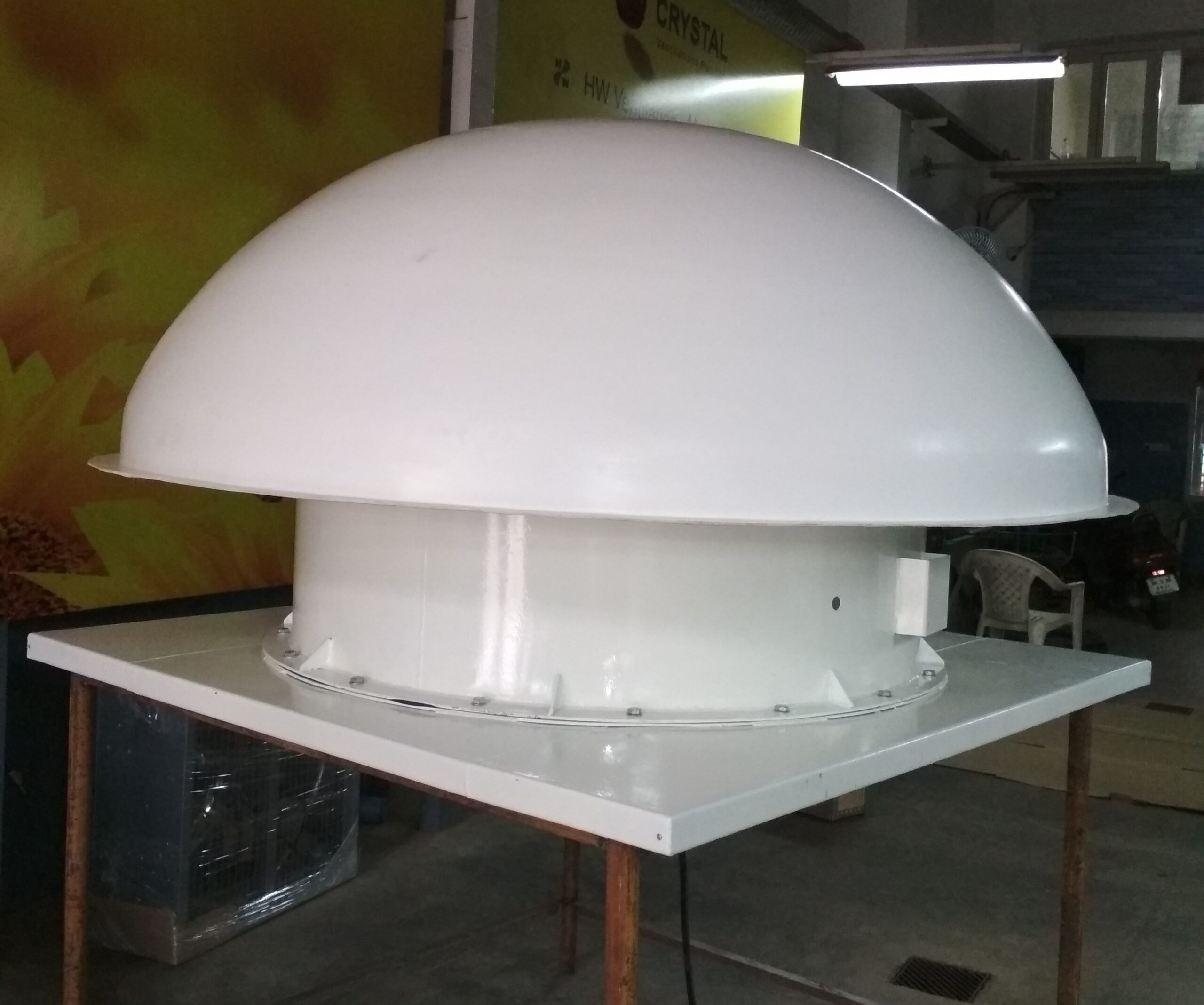

Motorized roof extractor axial fan
Mount
Roof-integrated
Product 09  ·  Partner-Sourced
09

Air Handling Units

Air Handling Units are the central conditioning hub of a built-up HVAC system. They combine filtration, heating, cooling, humidity control, and supply or return air movement into a single enclosure, sized and configured to match the building's load profile.

Crystal supplies AHUs through select manufacturing partners as part of integrated ventilation and HVAC projects. We handle specification, supply, integration, and commissioning so you get a single point of accountability across the full system.

  • Custom-configured to your facility's airflow and load requirements
  • Modular construction: filter, cooling coil, heating coil, fan, humidifier sections
  • EC fan options for energy efficiency and variable-speed operation
  • Heat recovery wheels and plate exchangers available
  • Integration with BMS and facility control systems
  • Supplied as part of end-to-end HVAC design and installation
Specified, sourced, and integrated as a complete systemAHUs are typically part of an integrated HVAC engagement. We handle specification, sourcing through select manufacturing partners, integration, and commissioning. See our HVAC Design service for the full delivery model.
HVAC Design ServiceRequest an AHU Spec
Air Handling Unit rooftop installation with extensive ducting and access platforms
Delivery
As integrated system
At a Glance

Which product fits
your application?

A quick comparison across our finished-fan lineup. For sizing and detailed specification, request a consultation.

HVLSTube AxialCentrifugalPivot SocialRoof Extractor
Best forLarge volume, low-pressure airflow in tall spacesTargeted, high-velocity directional airflowDucted systems requiring high static pressureWide social coverage from wall/column mountRoof-level exhaust of hot or contaminated air
Typical mountCeilingIn-line or wallIn-line or floorWall or columnRoof
Pressure capabilityLowMediumHighLowMedium
Sound levelNear-silentModerateModerate to highQuietModerate
Energy efficiencyExcellentGoodApplication-dependentGoodGood
HW Italy partnership appliesNoYesNoNoNo
AMCA-certified models availableNoYes (HW impellers)NoNoNo
Energy Savings Calculator

How much could you
save with HVLS?

Replace banks of conventional industrial fans with a single HVLS unit and see the impact on your annual energy bill, your CO2 footprint, and your equipment count.

How the math works — in plain terms.
Imagine a 10,000 sq ft workshop. To move enough air through it, you would typically need around 12 conventional pedestal fans (each one covers ~860 sq ft and pulls 0.18 kW). That is roughly 2.16 kW running continuously. One Crystal 16 ft HVLS fan covers the same space at just 1.0 kW — less than half the power, for better airflow.

Run that comparison for the hours and days you operate, multiply by your electricity rate, and you have your annual savings. We translate kWh into CO2 using India's grid average (0.72 kg CO2/kWh, Central Electricity Authority) and into trees using the EPA standard of 22 kg CO2 absorbed per mature tree per year. Numbers are directional — final savings depend on ceiling height, layout, and actual operating pattern.

sq ft
hrs
days
₹ / kWh
Estimated annual savings
0kWh saved
Annual cost savings
₹ 0
CO₂ avoided per year
0kg
10-year lifetime savings
₹ 0
Projected total over a 10-year planning horizon
Equivalent to planting
0trees / year
Based on a mature tree absorbing ~22 kg CO₂ per year
1 HVLS unit recommended
replacing conventional fans
Coverage map —
Your facility (approx. square) HVLS coverage radius

Diagram approximates your space as a square. For odd-shaped facilities, overlay the coverage rings on your blueprint to plan fan placement and check for overlap.

Get a Tailored QuoteRequest a Detailed Assessment

Need more than equipment?

HVAC design, installation, green initiative assessments, and service contracts. We do not just sell fans, we design and deliver complete systems.
